Front

REMOVAL





1. With vehicle in neutral, position vehicle on hoist.

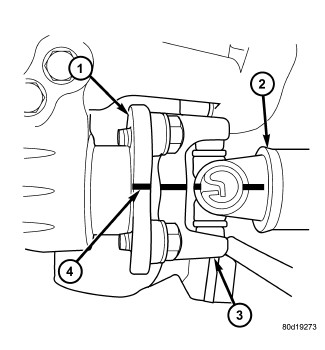

2. Mark a line across the axle pinion flange (1), propeller shaft (2), flange yoke (3) and transfer case for installation reference.
3. Support the transmission and the transmission crossmember.





4. Remove propeller shaft (1) from transfer case flange (2).





5. Remove propeller shaft (1) from axle pinion flange (2).
