Drive Shaft, Outer Boot - Removal
REMOVAL
NOTE: CV joint is serviced with the shaft, the boot can be serviced separately
1. Remove inner CV boot and joint.

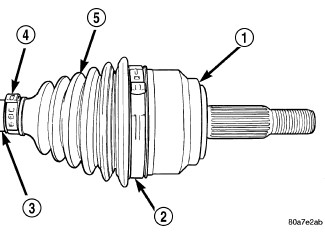

2. Cut outer CV boot (5) clamps (2,4).
3. Cut boot off CV housing (1) and shaft (3).
REMOVAL
NOTE: CV joint is serviced with the shaft, the boot can be serviced separately
1. Remove inner CV boot and joint.
2. Cut outer CV boot (5) clamps (2,4).
3. Cut boot off CV housing (1) and shaft (3).
