Drive Shaft, Outer Boot - Installation

INSTALLATION





1. Clean the CV joint then apply new grease to the joint.

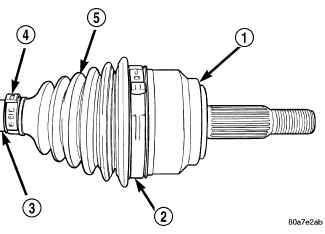

2. Slide new boot (5) on to the shaft (3) and CV housing (1).
3. Install boot clamps (2,4) in original locations.
4. Install inner CV joint and boot.
