Installation






INSTALLATION

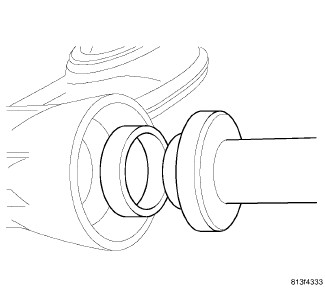

1. Install axle bushing (1) with Installer 5063 (2) and hammer.
2. Install axle shaft and seal.
