Differential Carrier Bearings - Installation

INSTALLATION






CAUTION: Do not disturb the ELSD pump after bearing has been removed. Failure to follow these instructions will damage the pump seals.

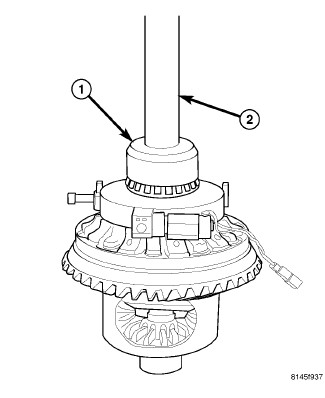

1. Install differential case bearing with Installer C-4340 (1) and Handle C-4171 (2).
