Vari-Lok Differential Carrier Bearings - Installation

INSTALLATION

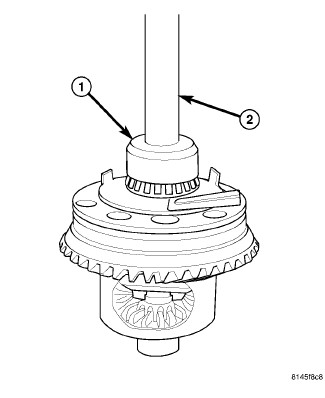

1. Install differential case bearing with Installer C-4340 (1) and Handle C-4171 (2).

CAUTION: Vari-lok(R), plenum must be seated against the differential case, prior to installing the ring gear side differential bearing. Failure to follow these instructions will damage the Vari-lok(R) plenum.
