Rear Axle - C213R
>>
Differential Carrier Bearings - Removal
Differential Carrier Bearings - Removal
REMOVAL
1.
Remove differential case from axle.
2.

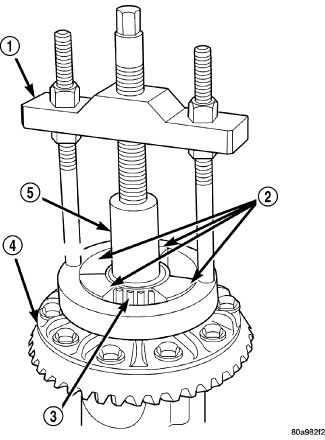

Remove differential bearings (3) from the case with Puller/Press C-293-PA (1) and Adapters C-293-48 (2) and Plug SP-3289 (5).
