Differential Carrier Bearings - Installation






INSTALLATION

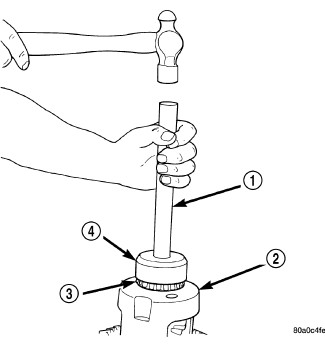

1. Install differential side bearings (3) with Installer C-4340 (4) and Handle C-4171 (1).
2. Install differential case in axle.
