Differential Carrier - Disassembly

DISASSEMBLY





1. Remove pinion mate shaft.

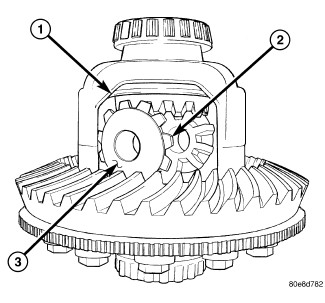

2. Rotate one pinion gear (2) with thrust washer (3) to the differential window (1). Remove gear and thrust washer.





3. Rotate remaining pinion gear (3) with thrust washer (2) to the differential window (1). Remove gear and washer.

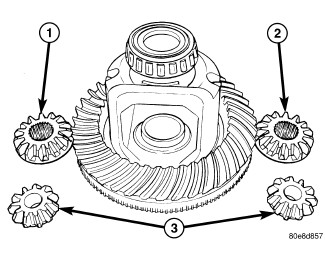

4. Remove differential side gears (1) (2) and thrust washers.
