Front Axle - C200F
>>
Differential Carrier Bearings - Removal
Differential Carrier Bearings - Removal
REMOVAL
1.
Remove differential from housing.
2.

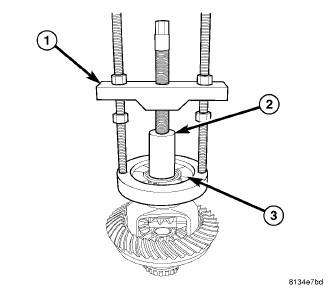

Remove differential bearings with Puller C-293-PA (1), Plug C-293-3 (2) and four Adapters C-293-48 (3).
