Differential Carrier Bearings - Installation






INSTALLATION

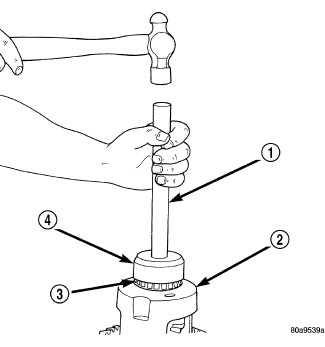

1. Install differential case (2) bearings (3) with bearing Installer 9535 (4) and Handle C-4171(1).
2. Install differential into the housing.
