Differential Carrier - Disassembly

DISASSEMBLY





1. Remove left hand thread ring gear bolts.
2. Drive ring gear of the case with a soft hammer.

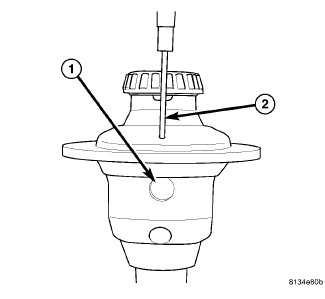

3. Remove pinion mate shaft (1) lock pin with a punch (2) and hammer.

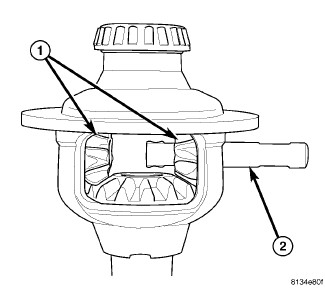

4. Remove pinion gears (1) mate shaft (2) from the case.

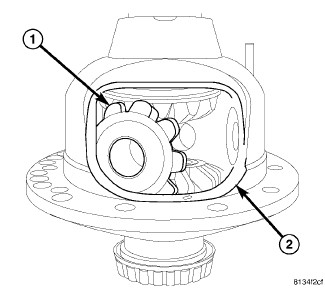

5. Rotate pinion gears (1) with washers to differential window (2) and remove gears through window.

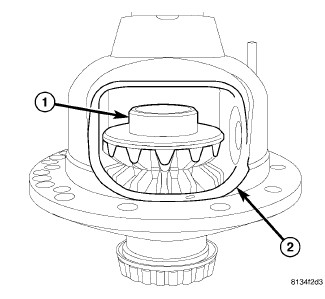

6. Remove upper side gear (1) through differential window (2).

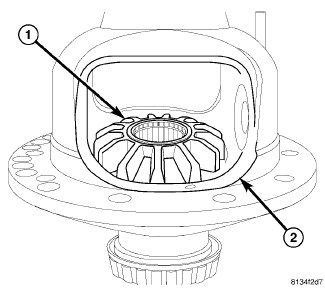

7. Remove lower side gear (1) through differential window (2).
