Axle Shaft Seal - Removal

REMOVAL





1. With vehicle in neutral, position on hoist.
2. Remove calipers and rotors.

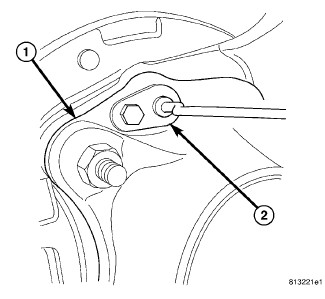

3. Remove speed sensors (2) from axle tube (1) flange.

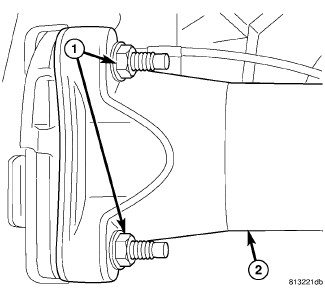

4. Remove axle flange nuts (1) from axle (2).

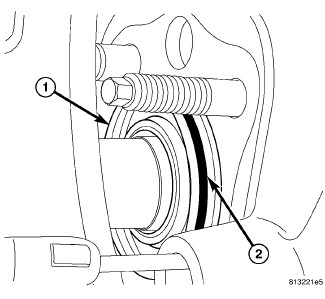

5. Pull axle shaft and backing plate out of axle tube until axle bearing (1) is exposed.
6. Remove O-ring (2) from the axle bearing.

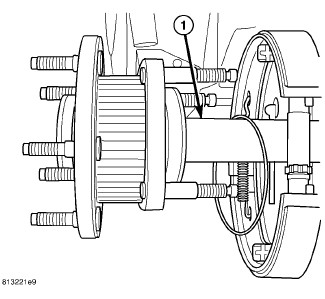

7. Remove axle shaft (1) from axle tube and backing plate.
