Axle Shaft Tube Seal - Removal






REMOVAL





1. Remove axle shaft.

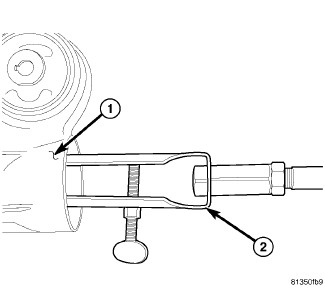

2. Remove axle shaft tube (1) seal with seal Remover 7794-A (2) and slide hammer.
