Axle Shaft Tube Seal - Installation






INSTALLATION

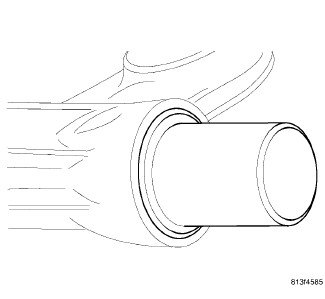

1. Install axle (1) seal with Installer 8402 (2) and hammer.
2. Install axle shaft.
