Axle Shaft Seal - Removal






REMOVAL





1. Remove half shaft from axle.

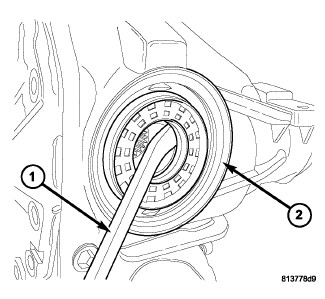

2. Pry seal (2) out with a seal pick (1).
