Axle Bushings - Removal

REMOVAL





1. Remove axle from vehicle.
2. Remove pinion flange.
3. Mark bushings position in the axle.

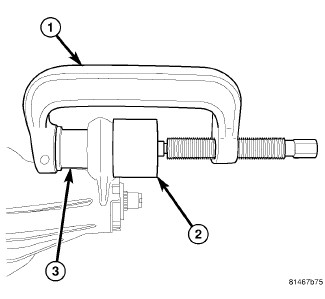

4. Remove pinion nose bushing with Press C-4212F (1) bushing Receiver 9536 (2) and bushing Remover 9512 (3).





5. Remove axle tube bushing with Press C-4212F (1) bushing Receiver 9536 (2) and bushing Remover 9512 (3).
