Front Suspension Stabilizer Bar To Frame Bushing - Removal

STABILIZER BAR TO FRAME BUSHING










1. Raise and support the vehicle.
2. Remove the front splash shield.

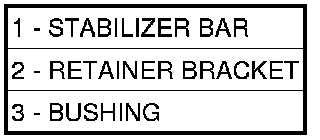

3. Remove the two stabilizer bar retainer bracket bolts (2).
4. Remove the bushing clamp (2).
5. Remove the stabilizer bar bushing (3).
