Right Side

RIGHT SIDE

NOTE: All torques should be done with vehicle on the ground with full vehicle weight.

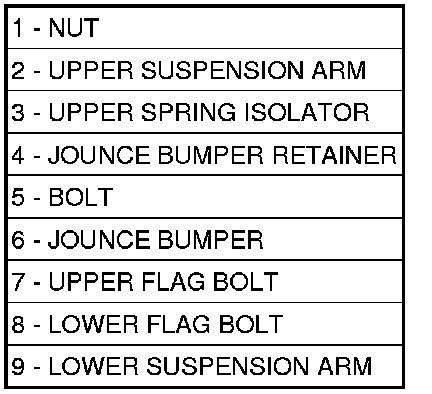

1. Position the upper suspension arm (2) in the frame rail bracket.
2. Install the mounting bolt (7) and nut (1) tighten to 129 Nm (95 ft. lbs.).

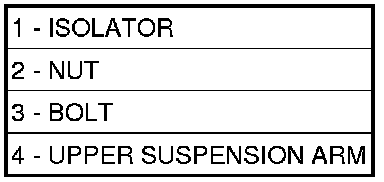

3. Position the upper suspension arm (4) in the axle bracket.
4. Install the mounting bolt (3) and nut (2) tighten to 136 Nm (100 ft. lbs.).
5. Remove the supports and lower the vehicle.
