Front Lower Control Arm - Removal

REMOVAL

1. Raise and support the vehicle.
2. Remove the tire and wheel assembly.

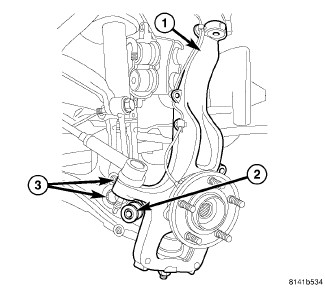

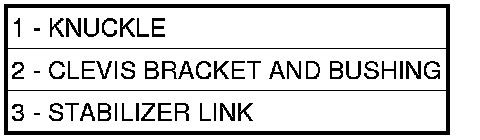

3. Remove the steering knuckle (3). Front Steering Knuckle - Removal.










4. Remove the shock clevis bracket (3) from the lower control arm.
5. Remove the stabilizer link (2) at the lower control arm.










6. Remove the nut and bolt from the front of the lower control arm.
7. Remove the rear bolts (2) and flag nuts (3) from the lower control arm (1).
8. Remove the lower control arm from the vehicle.
