Front Suspension Upper Ball Joint - Installation

INSTALLATION






NOTE: Do not remove the grease boot from the new ball joint. When installing the new ball joint the grease boot should not be removed.

NOTE: Extreme pressure lubrication must be used on the threaded portions of the tool. This will increase the longevity of the tool and insure proper operation during the removal and installation process.

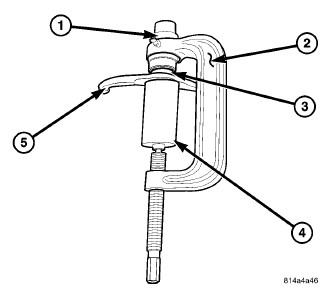

1. Install the ball joint (3) into the upper control arm (5) and press in using special tools C-4212F (press) (2), 9652 (Driver) (1) and 8975-2 (Receiver) (4).





2. Install the upper ball joint (2) into the knuckle (3).
3. Install the upper ball joint retaining nut (4) and tighten to 95 Nm (70 ft. lbs.).





4. Install the tire and wheel.
5. Remove the supports and lower the vehicle.
6. Perform a wheel alignment Service and Repair.
