Pressure Hose - Gear to Pump

PRESSURE HOSE - GEAR TO PUMP

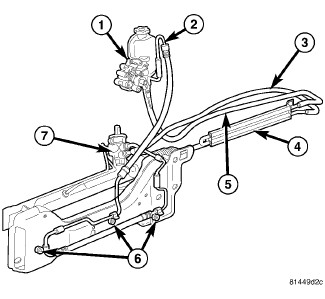

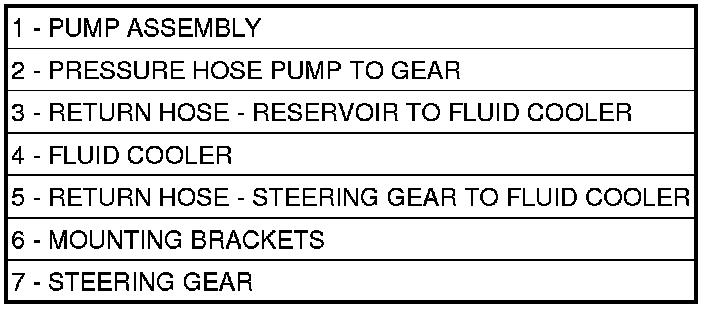

1. Install the line (2) to the vehicle.
2. Install the three mounting brackets (6) for the pressure line (2) to the engine cradle.
3. Reconnect the power steering pressure line (2) to the power steering gear (7) Tighten to 28 Nm (21 ft.lbs.).
4. Reconnect the power steering pressure line (2) to the power steering pump (1) Tighten to 28 Nm (21 ft.lbs.).
5. Refill the power steering fluid and bleed the system Power Steering System Bleeding.
