With HEC Fan

WITH HEC FAN

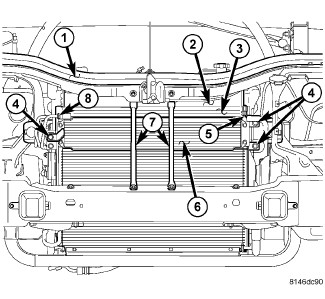

The power steering fluid cooler (6) is located at the front of the vehicle. It is mounted to the radiator support just forward of the air-conditioning condenser (3) and just rearward of the front fascia. The cooler is positioned so it is in the air flow through the front fascia of the vehicle.
