Front

REMOVAL

1. Raise and support the vehicle.
2. Remove the tire and wheel assembly.
3. Remove the caliper adaptor bolts. Support the caliper and adaptor assembly Do Not let assembly hang by the hose.Disc Brake Caliper - Removal.
4. Remove the disc brake rotor Brake Rotor - Removal.




5. Remove the front wheel sensor mounting nut (2) to the hub (3).
6. Remove the wheel speed sensor (1) from the hub (3).

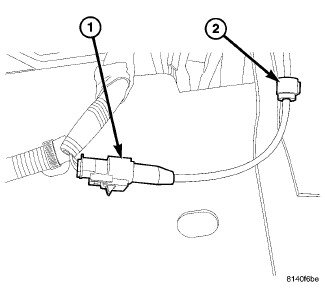

7. Disconnect the wire sensor routing clips (2).
8. Disconnect the wheel speed sensor wire connector (1).
9. Remove the sensor and wire.
