Remote Radio Switches - Installation

INSTALLATION

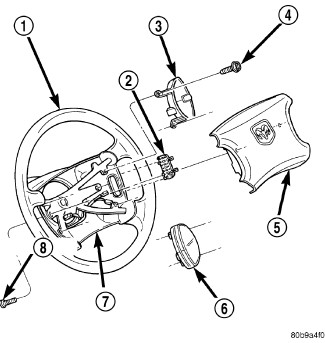

1. Position the remote radio switch (2) to the mounting hole on the outside of the steering wheel rear trim cover. Be certain that the connector receptacle is oriented toward the bottom of the switch and pointed toward the center of the steering wheel.
2. Press firmly and evenly on the remote radio switch until each of the switch latches is fully engaged in the mounting hole of the steering wheel rear trim cover.
3. Reconnect the steering wheel wire harness connector to the connector receptacle of the remote radio switch.
4. Install the speed control switch (3) (6) onto the steering wheel. Speed Control Switch - Installation.
5. Install the driver side airbag (5) to the steering wheel (1). Driver Air Bag - Installation.
6. Connect the battery negative cable.
