Lower

LOWER

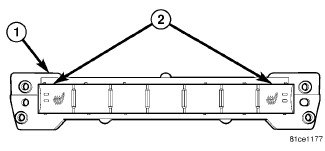

The lower instrument panel switch pod (1) is located just below the heater and air conditioner controls in the center stack area of the instrument panel. This switch has provisions for up to seven push button switches, but is presently available in only a single configuration. The lower pod includes the following switches:

- Driver and Passenger Front Heated Seat (2)

The switch housing and the push buttons are constructed of molded plastic. Each push button has a smooth finish and is clearly identified with the appropriate text and International Control and Display Symbol icons. The heated seat push buttons feature Light Emitting Diode (LED) units to give the vehicle operator an indication when the function of that switch is currently active.

Four screws secure the switch to the back of the instrument panel center bezel through integral mounting tabs that are molded onto each end of the switch housing. The back of the switch housing has an integral connector receptacle containing terminal pins that connect the switch to the vehicle electrical system through a dedicated take out and connector of the instrument panel wire harness.

Panel lamps dimmer controlled illumination lamps integral to the circuit board within the switch provide back lighting for visibility at night, but these lamps are not serviceable. The individual switches in the lower instrument panel switch pod cannot be repaired and are not serviced individually. If any component within the switch pod is ineffective or damaged, the entire lower switch pod must be replaced.
