Home >> Jeep Truck >> 2009 >> Commander 4WD V8-4.7L >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - HVAC >> Blower Motor Relay >> Diagrams >> Rear Blower Motor Relay (In JB)

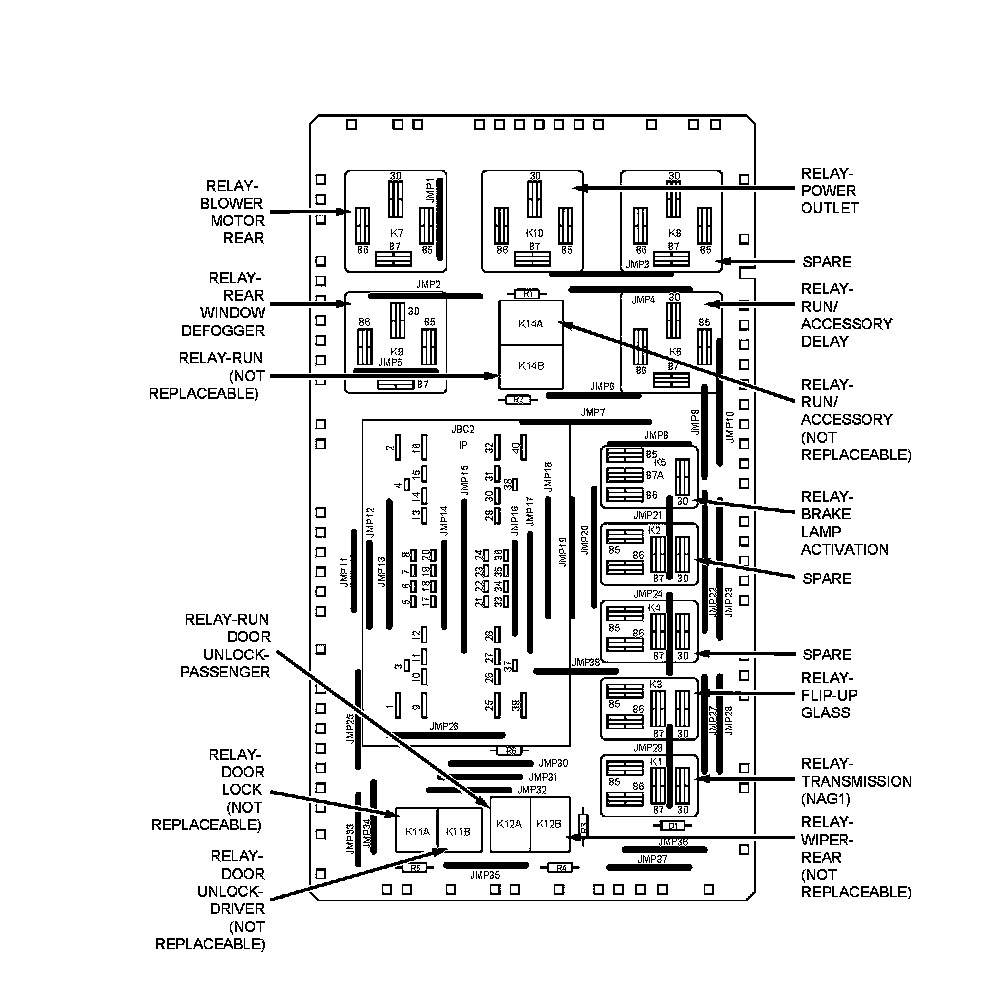

Rear Blower Motor Relay (In JB)

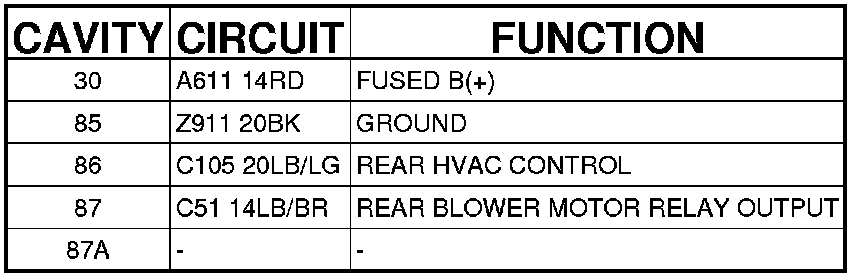

Connector - (IN JB)




RELAY-BLOWER MOTOR-REAR - (IN JB)
