Description and Operation
>>
Description
Description
DESCRIPTION

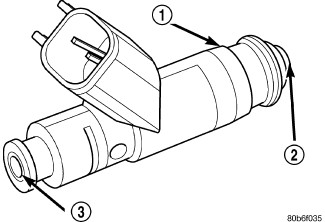

An individual
fuel injector
(1) is used for each individual cylinder.
