Positive Crankcase Ventilation (PCV) Valve - Removal

REMOVAL

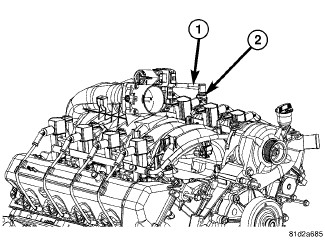

The PCV valve (2) is mounted into the top/rear of the left valve cover.
1. Disconnect plastic line (1) from end of PCV valve.
2. Use a small screwdriver to disengage PCV valve from valve cover.
