Hard Start Fuel System

HARD START FUEL SYSTEM

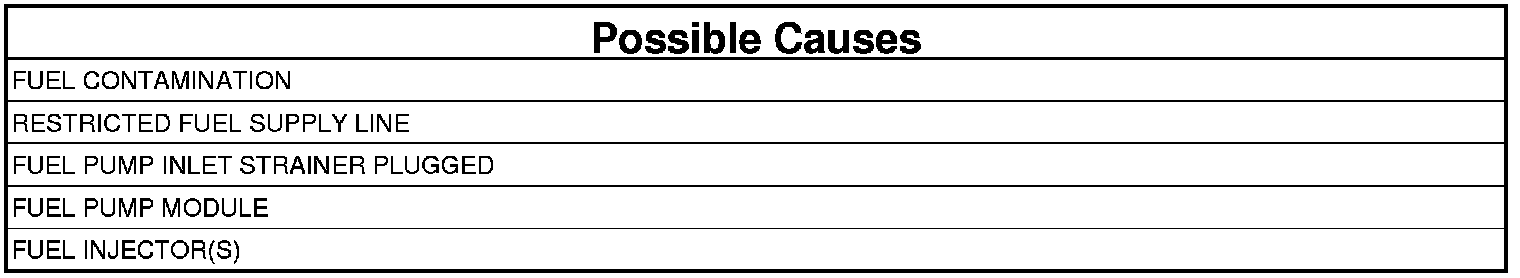

For a complete wiring diagram, refer to the Wiring Information Electrical Diagrams.






1. CHECKING FUEL PRESSURE

WARNING: The fuel system is under a constant pressure (even with the engine off). Before testing or servicing any fuel system hose, fitting or line, the fuel system pressure must be released. Failure to follow these instructions can result in possible serious or fatal injury.

1. Turn the ignition off.
2. Install the Fuel Pressure Decay Tester 8978 at the engine.
3. Ignition on, engine not running.
4. With a scan tool, actuate the ASD Fuel System test and observe the fuel pressure gauge.

NOTE: Fuel pressure specification is 407 kPa +/- 34 kPa (59 psi +/- 5 psi).

Choose a conclusion that best matches your fuel pressure reading.

Below Specification

- Go To 2

Within Specification

- Go To 4

2. RESTRICTED FUEL SUPPLY LINE

WARNING: The fuel system is under a constant pressure (even with the engine off). Before testing or servicing any fuel system hose, fitting or line, the fuel system pressure must be released. Failure to follow these instructions can result in possible serious or fatal injury.

1. Turn the ignition off.
2. Remove the Fuel Pressure Decay Tester 8978.
3. Raise the vehicle on a hoist, and disconnect the fuel pressure line at the fuel pump module.
4. Install the Fuel Pressure Decay Tester 8978 between the fuel supply line and the fuel pump module.
5. Ignition on, engine not running.
6. With the scan tool, actuate the ASD Fuel System test and observe the fuel pressure gauge.

NOTE: Fuel pressure specification is 407 kPa +/- 34 kPa (59 psi +/- 5 psi).

Is the fuel pressure within specification?

Yes

- Visually and physically inspect the fuel supply lines between the fuel tank and the fuel rail. Repair/replace as necessary.
- Perform the POWERTRAIN VERIFICATION TEST. Powertrain Verification Test

No

- Go To 3

3. CHECKING THE FUEL INLET STRAINER

WARNING: The fuel system is under a constant pressure (even with the engine off). Before testing or servicing any fuel system hose, fitting or line, the fuel system pressure must be released. Failure to follow these instructions can result in possible serious or fatal injury.

1. Turn the ignition off.
2. Remove the Fuel Pump Module and inspect the Fuel Inlet Strainer.

Is the Fuel Inlet Strainer plugged?

Yes

- Replace the Fuel Pump Inlet Strainer.
- Perform the POWERTRAIN VERIFICATION TEST. Powertrain Verification Test.

No

- Replace the Fuel Pump Module.
- Perform the POWERTRAIN VERIFICATION TEST. Powertrain Verification Test.

4. FUEL PUMP MODULE

NOTE: Before continuing visually and physically inspect the fuel delivery system for external leaks or damage. Repair/replace as necessary.

WARNING: The fuel system is under a constant pressure (even with the engine off). Before testing or servicing any fuel system hose, fitting or line, the fuel system pressure must be released. Failure to follow these instructions can result in possible serious or fatal injury.

1. Turn the ignition off.
2. Install the Fuel Pressure Decay Tester 8978 at the intake manifold.
3. Start the engine and allow the fuel system to reach maximum pressure.
4. Turn the ignition off.
5. Close the Fuel System Isolation Valve and then wait 5 minutes before proceeding.

NOTE: Fuel specification is 407 KPa +/- 34 KPa (59 psi +/- 5 psi).

6. Read the Fuel Inlet and Fuel Outlet Pressure Gauges. The pressure should not drop more than 10 psi on either gauge.
7. Monitor the fuel pressure gauge for a minimum of 5 minutes.

Does the fuel pressure drop more than 10 psi?

Yes - On Fuel Inlet Gauge

- Replace Fuel Pump Module.
- Perform the POWERTRAIN VERIFICATION TEST. Powertrain Verification Test.

Yes - On Fuel Outlet Gauge

- Replace the leaking fuel injector(s).
- Perform the POWERTRAIN VERIFICATION TEST. Powertrain Verification Test.

No

- If directed here by another test, return to that test. Otherwise, test complete.
