Air Cleaner Body - Installation

INSTALLATION

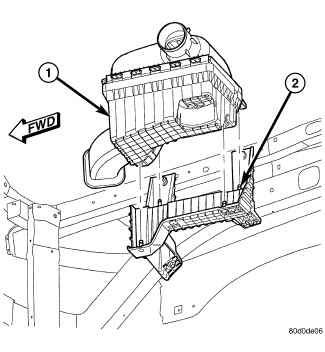

1. Install filter element into housing (1).
2. Position housing cover into housing locating tabs.
3. Pry up 4 spring clips and lock cover to housing.
4. Install air duct to air cleaner cover and tighten hose clamp to 3 Nm (30 in. lbs.) torque.
5. If any other hose clamps were removed from air intake system, tighten them to 3 Nm (30 in. lbs.) torque.
6. If any bolts were removed from air resonator housing or air intake tubing, tighten them to 4 Nm (40 in. lbs.) torque.
