Rear

BULB

CAUTION: Always use the correct bulb size and type for replacement. An incorrect bulb size or type may overheat and cause damage to the lamp, the socket or the lamp wiring.

NOTE: The following procedure applies only to vehicles manufactured for certain export markets where rear fog lamps are optional or required equipment. Rear fog lamps are not available in vehicles manufactured for North American markets.

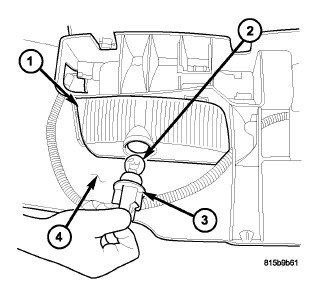

1. Reach under and behind the rear bumper fascia (4) to access either of the two rear fog lamp sockets (3).
2. Align the base of the bulb (2) with the socket.
3. Push the bulb straight into the socket until the base is firmly seated.
4. Align the socket and bulb with the keyed opening on the bottom of the rear fog lamp housing (1).
5. Insert the socket and bulb into the housing until the socket is firmly seated.
6. Rotate the socket clockwise about 30 degrees to lock it into place.
7. Reconnect the battery negative cable.
