Front

BULB - FRONT

CAUTION: Always use the correct bulb size and type for replacement. An incorrect bulb size or type may overheat and cause damage to the lamp, the socket or the lamp wiring.

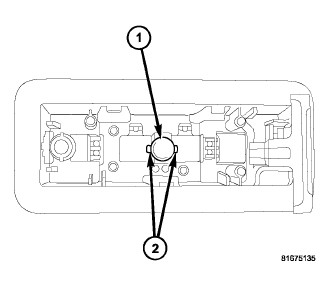

1. Align the base of the bulb (1) with the bulb holder (2) within the reading lamp housing.
2. Push the bulb into the holder until the base is fully seated.





3. Starting at the hinge end of the lamp, position the reflector (4) over the three locating pins within the lamp housing (1).
4. Using hand pressure, push the reflector into the housing until each of the three retainers (3) that secure it are fully engaged.





5. Swing the switch end of the lens (2) back into position against the lamp housing (1), then using hand pressure press on the switch end of the lens firmly and evenly until it snaps into the housing.
6. Reconnect the battery negative cable.
