Left Front Courtesy Lamp Overhead (Overhead) 3 Way

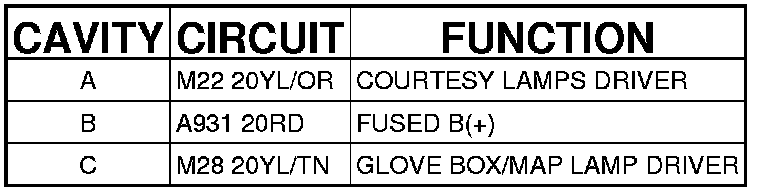

Connector - (OVERHEAD) 3 WAY

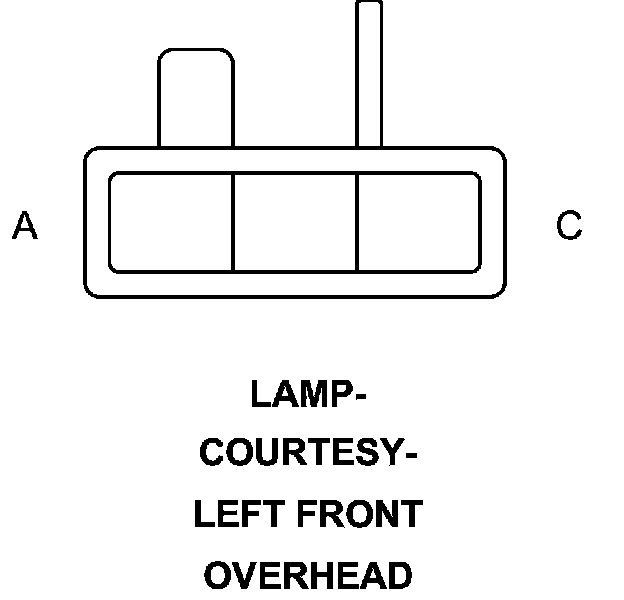

LAMP-COURTESY-LEFT FRONT OVERHEAD - (OVERHEAD) 3 WAY
