Rear Blower Motor Relay - Installation

INSTALLATION

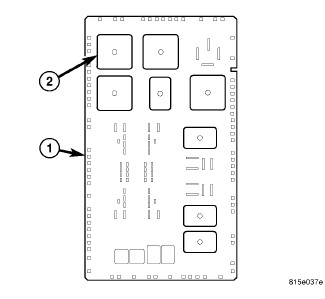

1. Position the rear blower motor relay (2) into the proper receptacle of the junction block (JB) (1) located in the passenger compartment.
2. Align the blower motor relay terminals with the terminal cavities in the JB receptacle and push down firmly on the relay until the terminals are fully seated.
3. Install the steering column opening cover Steering Column Opening Cover - Installation.
4. Reconnect the negative battery cable.
