Front Air Inlet Housing

HOUSING-AIR INLET

NOTE: The air inlet housing must be removed from HVAC housing and disassembled for service of the recirculation-air door.






NOTE: LHD model shown. RHD model similar.

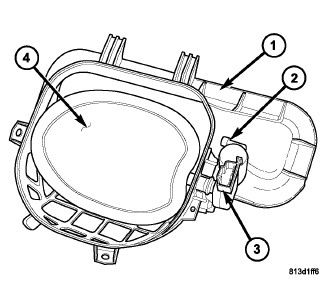

1. Remove the air inlet housing (1) from the HVAC housing and place it on a workbench
2. Remove the two screws (2) that secure the recirculation door actuator (3) to the air inlet housing and remove the actuator.

NOTE: If the foam seal on the recirculation-air door or the air inlet housing is deformed or damaged, it must be replaced.

3. Carefully remove the recirculation-air door (4) from the air inlet housing.
