Rear

DESCRIPTION

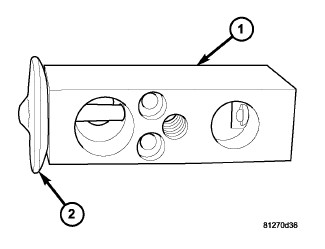

The rear A/C expansion valve is of a thermostatic expansion valve (TXV) design and controls the amount of refrigerant entering the rear A/C evaporator. The rear A/C expansion valve consists of an aluminum H-valve type body (1) with an integral thermal sensor (2) and is located on the bottom of the rear HVAC housing, which extends through the rear floor panel behind the right rear wheel housing.
