Rear

INSTALLATION

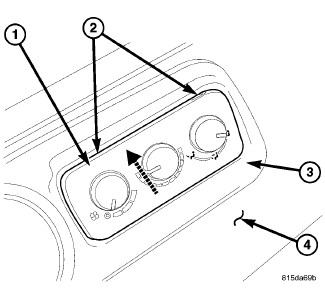

1. Position the rear A/C-heater control (1) near the bezel (3) located in the right interior quarter trim panel (4).
2. Connect the wire harness connectors to the back of the rear A/C-heater control.
3. Install the rear A/C-heater control into the bezel and gently push down on the control until the retainer clips (2) fully engage the slots in the bezel.
4. Reconnect the negative battery cable.
5. Initiate the Actuator Calibration function using a scan tool . HVAC System Test
