Rear

INSTALLATION

UPPER DISTRIBUTION DUCT

NOTE: Right side upper distribution duct shown in illustration. Left side duct similar.

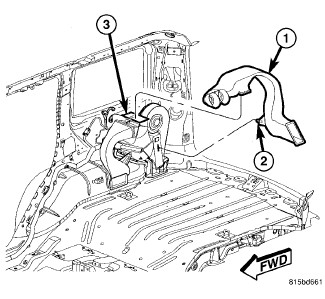

1. Position the upper distribution duct (1) to the top of the rear HVAC housing (3) or the left upper air outlet, depending on application and connect the duct to the housing or outlet.
2. Engage the retainer (2) or install the screws that secure the upper distribution duct to the rear HVAC housing or left interior quarter trim panel, depending on the duct being serviced.
3. Install the interior quarter trim panel Quarter Trim Panel - Installation.

LOWER DISTRIBUTION DUCT

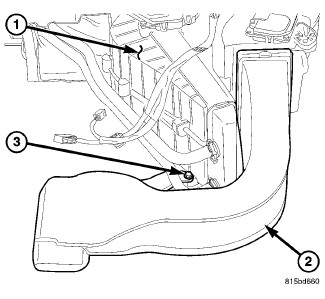

1. Position the lower distribution duct (2) to the rear HVAC housing (1) and connect the duct to the front of the housing.
2. Install the screw (3) that secures the lower distribution duct to the rear HVAC housing. Tighten the screw to 2 Nm (17 in. lbs.).
3. Install the rear HVAC housing .
