Valve Rocker Arm - Removal

REMOVAL










NOTE: Disconnect the battery negative cable to prevent accidental starter engagement.

1. Remove the cylinder head cover Cylinder Head Cover(s) - Removal.
2. For rocker arm removal on cylinders 3 and 5 Rotate the crankshaft until cylinder #1 is at TDC exhaust stroke.
3. For rocker arm removal on cylinders 2 and 8 Rotate the crankshaft until cylinder #1 is at TDC compression stroke.
4. For rocker arm removal on cylinders 4 and 6 Rotate the crankshaft until cylinder #3 is at TDC compression stroke.
5. For rocker arm removal on cylinders 1 and 7 Rotate the crankshaft until cylinder #2 is at TDC compression stroke.

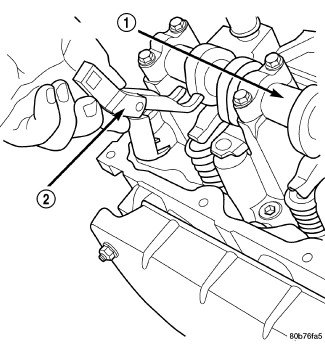

6. Using special tool 8516A Rocker Arm Remover (2), press downward on the valve spring, remove rocker arm.
