Camshaft - Left

INSTALLATION





1. Lubricate camshaft journals with clean engine oil.

NOTE: Position the left side camshaft so that the camshaft sprocket dowel is near the 1 o'clock position, This will place the camshaft at the neutral position easing the installation of the camshaft bearing caps.

2. Position the camshaft into the cylinder head.
3. Install the camshaft bearing caps, hand tighten the retaining bolts.
4. Working in 1/2 turn increments, tighten the bearing cap retaining bolts following the torque sequence.
5. Tighten the camshaft bearing cap retaining bolts to 11 Nm (100 in. lbs.).










6. Position the camshaft drive gear into the timing chain aligning the V8 mark between the two marked chain links (Two links marked during removal) (1).










NOTE: When gripping the camshaft, place the pliers on the tube portion of the camshaft only. Do not grip the lobes or the sprocket areas.

7. Using the adjustable pliers (1), rotate the camshaft until the camshaft sprocket dowel (2) is aligned with the slot in the camshaft sprocket. Install the sprocket onto the camshaft.

CAUTION: Remove excess oil from the camshaft sprocket bolt. Failure to do so can cause bolt over-torque resulting in bolt failure.

8. Remove excess oil from bolt, then install the camshaft sprocket retaining bolt and hand tighten.

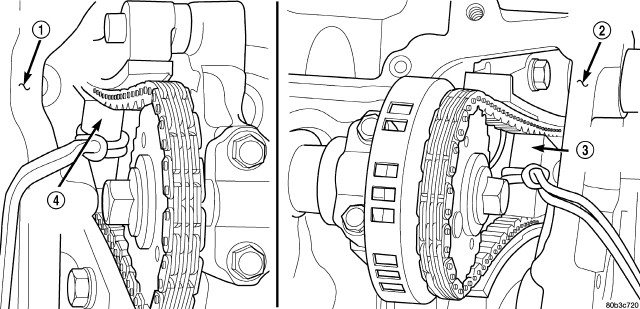

9. Remove Locking Wedge Tool 9867 timing chain wedge (4).










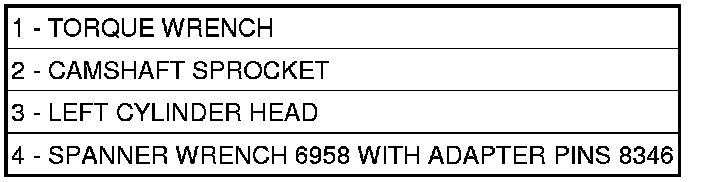

10. Using Spanner Wrench 6958 (4) with adapter pins 8346, tighten the camshaft sprocket retaining bolt (2) to 122 Nm (90 ft. lbs.).





11. Install the cylinder head cover (1).
