Coolant Recovery Bottle - Installation

GAS ENGINES

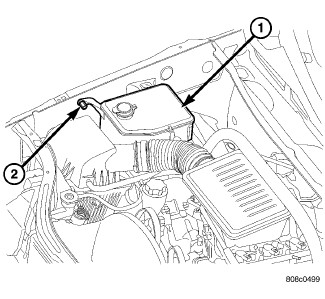

1. Position the coolant reservoir/overflow tank (1) in the vehicle.
2. Install two mounting bolts.
3. Install the coolant overflow hose (2).
