Jeep Truck
>>
2009
>>
Commander 4WD V8-4.7L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Vanity Lamp
>>

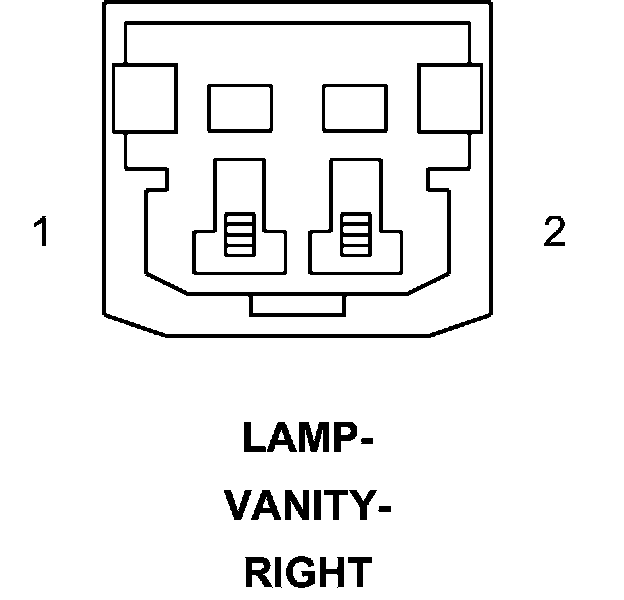

Right Vanity Lamp (Overhead) 2 Way
Right Vanity Lamp (Overhead) 2 Way

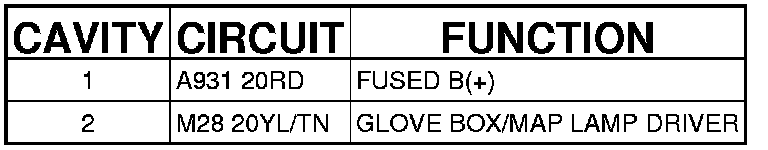

Connector - (OVERHEAD) 2 WAY
LAMP-VANITY-RIGHT - (OVERHEAD) 2 WAY
