Trailer Tow Module C3 (Underbody) 4 Way

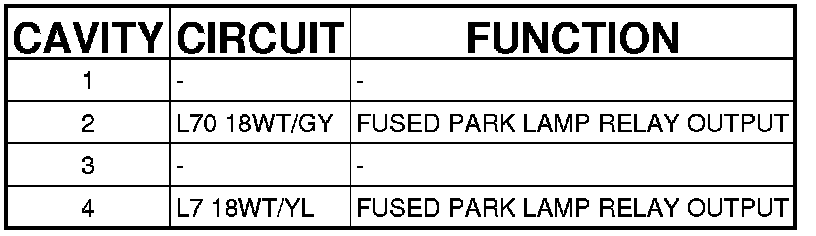

Connector C3 - (UNDERBODY) 4 WAY

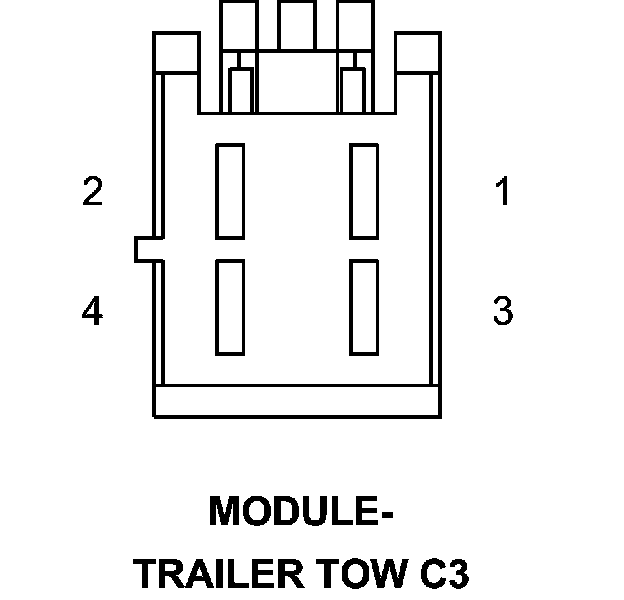

MODULE-TRAILER TOW - (UNDERBODY) 4 WAY
