Trailer Tow Module C2 (Underbody) 4 Way

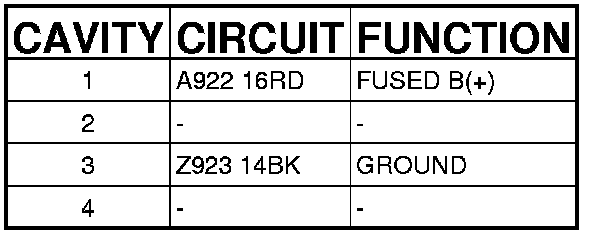

Connector C2 - (UNDERBODY) 4 WAY

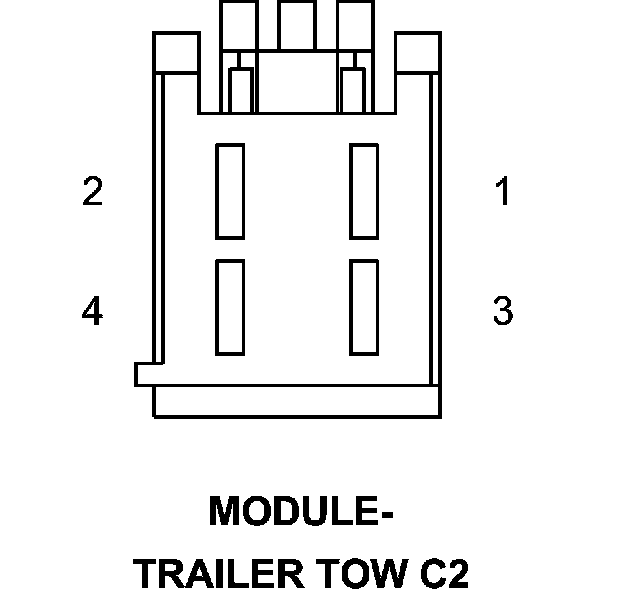

MODULE-TRAILER TOW - (UNDERBODY) 4 WAY
