Home >> Jeep Truck >> 2009 >> Commander 4WD V8-4.7L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Tire Pressure Monitor Receiver / Transponder >> Right Front Tire Pressure Transponder (Tire Pressure Monitor) (Headlamp And Dash) 6 Way

Right Front Tire Pressure Transponder (Tire Pressure Monitor) (Headlamp And Dash) 6 Way

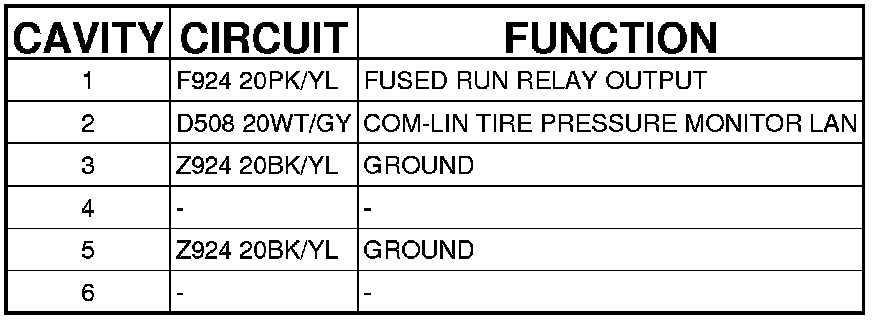

Connector (TIRE PRESSURE MONITOR) - (HEADLAMP AND DASH) 6 WAY

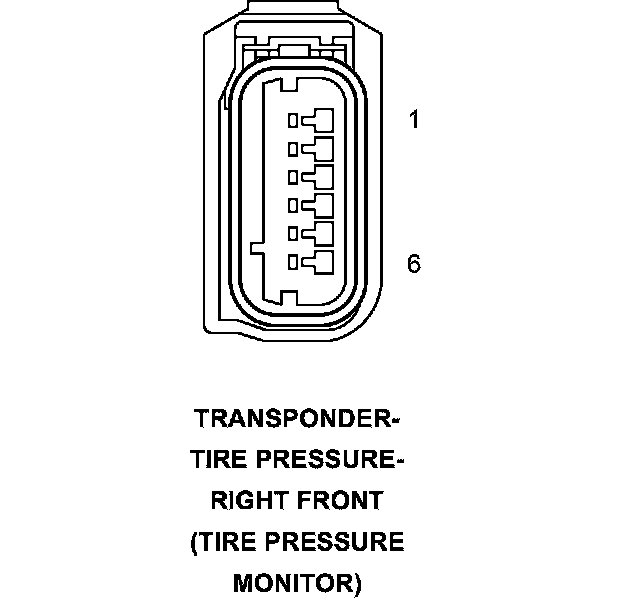

TRANSPONDER-TIRE PRESSURE-RIGHT FRONT (TIRE PRESSURE MONITOR) - (HEADLAMP AND DASH) 6 WAY
