Home >> Jeep Truck >> 2009 >> Commander 4WD V8-4.7L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Television / Monitor >> Video Screen Module 1 C3 (Overhead) 22 Way

Video Screen Module 1 C3 (Overhead) 22 Way

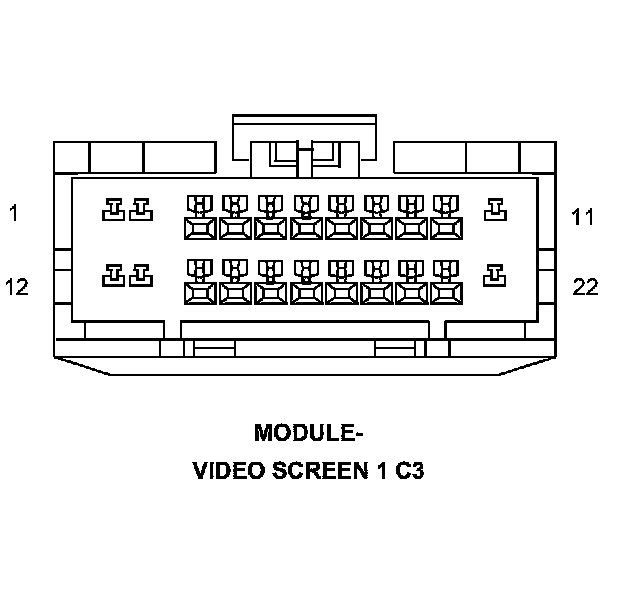

Connector C3 - (OVERHEAD) 22 WAY

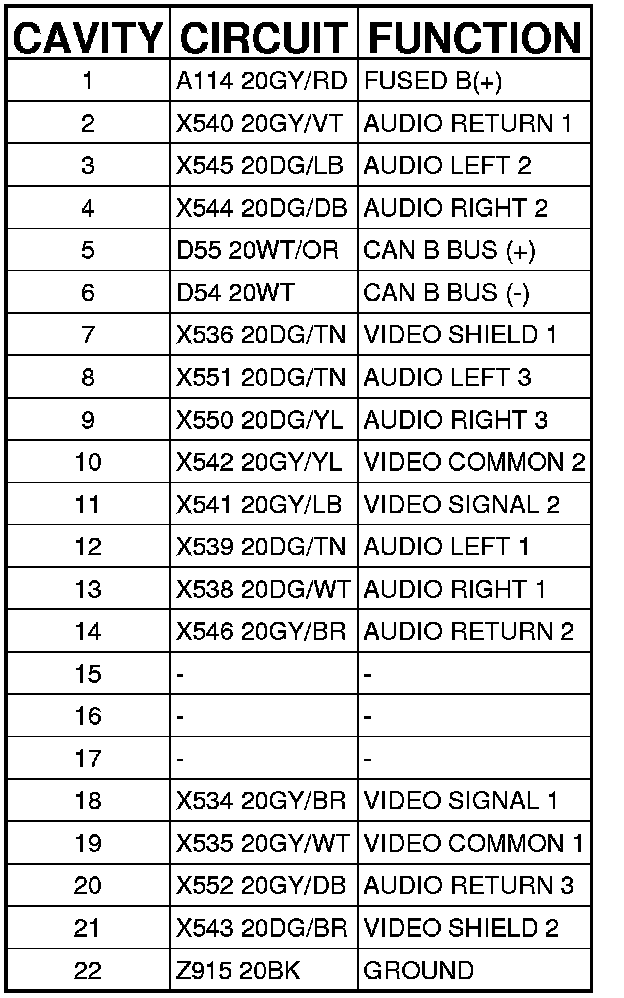

MODULE-VIDEO SCREEN 1 - (OVERHEAD) 22 WAY
