Steering Control Module C8 (Steering Wheel Jumper) 6 Way

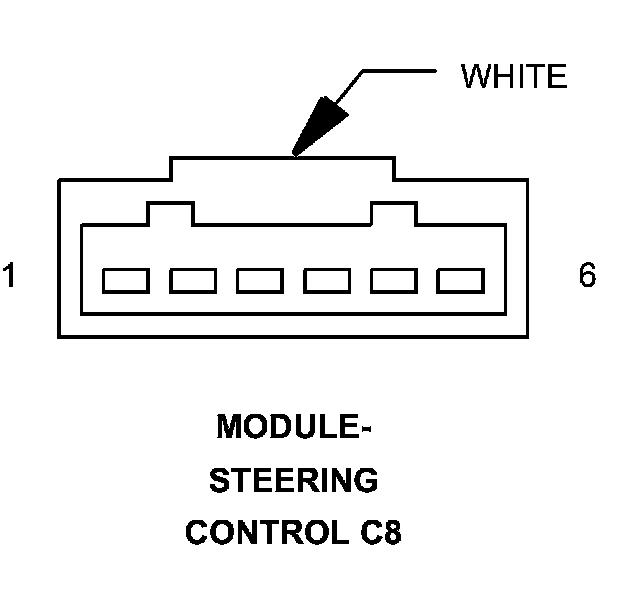

Connector C8 - (STEERING WHEEL JUMPER) 6 WAY

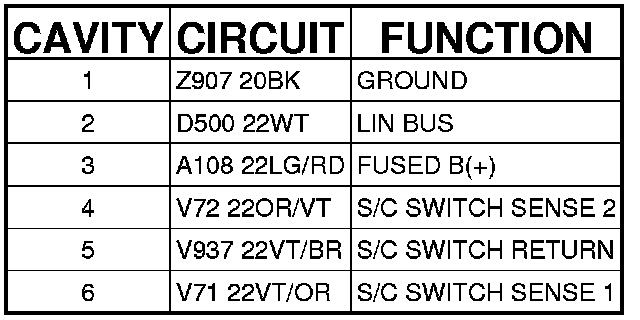

MODULE-STEERING CONTROL - (STEERING WHEEL JUMPER) 6 WAY
