Home >> Jeep Truck >> 2009 >> Commander 4WD V8-4.7L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Starter Relay

Starter Relay

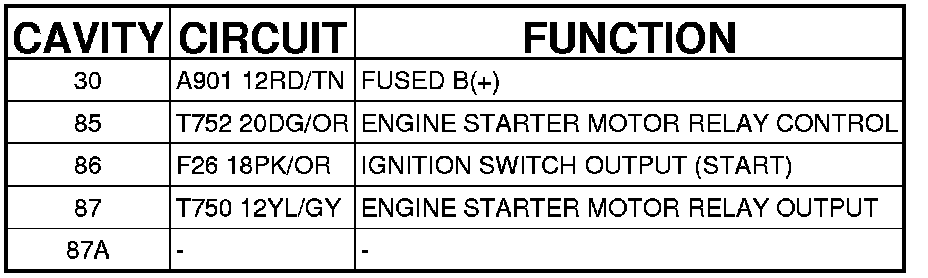

Connector - (IN PDC)

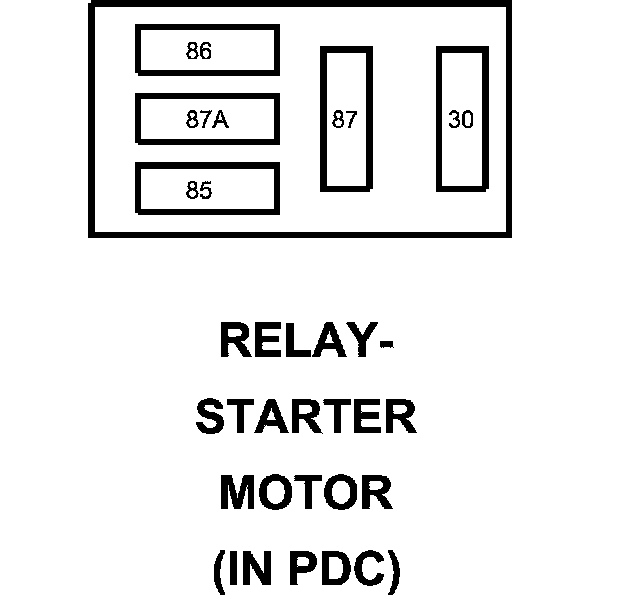

RELAY-STARTER MOTOR - (IN PDC)
