Left Rear Door Speaker (Left Rear Door) 3 Way
Left Rear Door Speaker (Left Rear Door) 3 Way

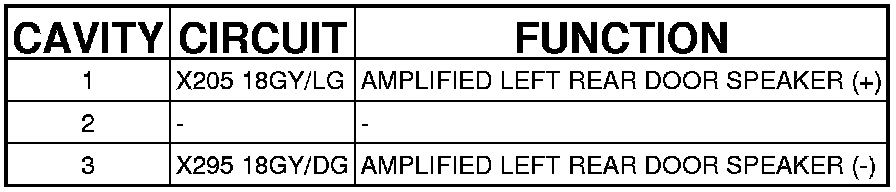

Connector - (LEFT REAR DOOR) 3 WAY

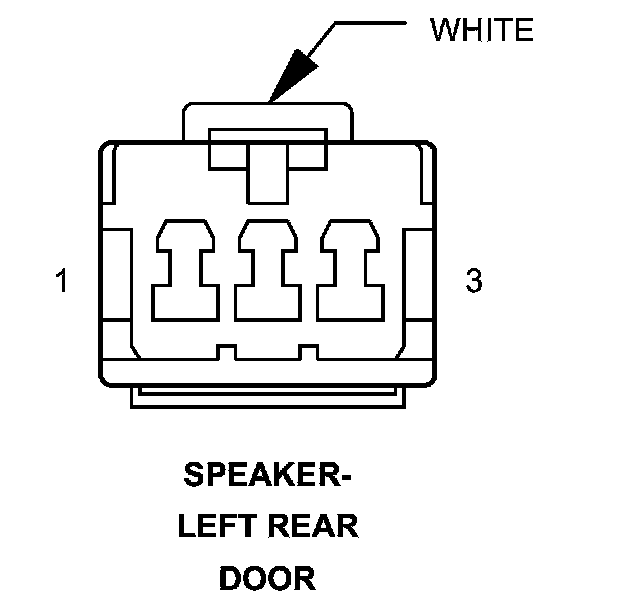

SPEAKER-LEFT REAR DOOR - (LEFT REAR DOOR) 3 WAY
